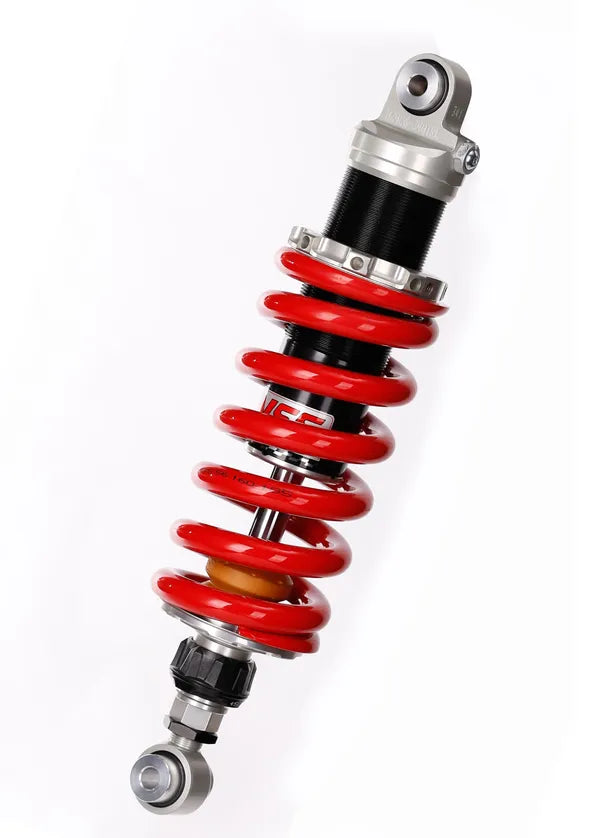

Yamaha 600 [YSS] – gas pressure emulsion mono shock absorber, adjustable length

Gas pressure emulsion mono shock absorber from YSS for Yamaha 600

The YSS gas pressure emulsion mono shock absorber is designed for installation on the rear axle of the Yamaha 600. It offers a robust construction made of aluminum and steel and is characterized by its versatile adjustment options. The combination of gas pressure and emulsion damping ensures balanced suspension characteristics.

Technical features

• Bore size: 45.00mm (1.77")
• Damper method: Emulsion
• Setting type: Manual rebound damping, length adjustable, thread-adjustable spring preload
• Height adjustment: ±5mm
• Length (extended): 380.00mm (14.96")
• Spring type: Simple linear spring rate
• Material: Aluminum, steel
• Color/Surface: Silver, red, black
• Mounting position: Rear
• Position reservoir: Inside

Function and use

The shock absorber is equipped with adjustable rebound damping, which allows the damping behavior to be individually adjusted. The length adjustment allows fine adjustment of the vehicle height, whereby a height adjustment of ±5 mm can be achieved. The thread-adjustable spring preload supports adaptation to different driving conditions and loads.

Emulsion damping combines oil and gas in one system, ensuring consistent damper performance. The internal reservoir contributes to the compact design and protects the damper components from external influences.

Material and workmanship

The use of aluminum and steel ensures a balance between weight and stability. The silver, red and black surface is functionally designed and supports corrosion resistance.

The YSS gas pressure emulsion mono shock absorber is available as a single part and belongs to the rear wheel suspension product group. It is specially tailored to the requirements of the Yamaha 600 and offers a solid basis for improved chassis performance.
