BMW R 1200 GS LC Rad [2013-2019] - Atlas Aluminum Side Case Set 48L + 41L + Aluminum Case Frame R1200GS LC - R1250GS & ADV

Robust Atlas aluminum case set for long journeys

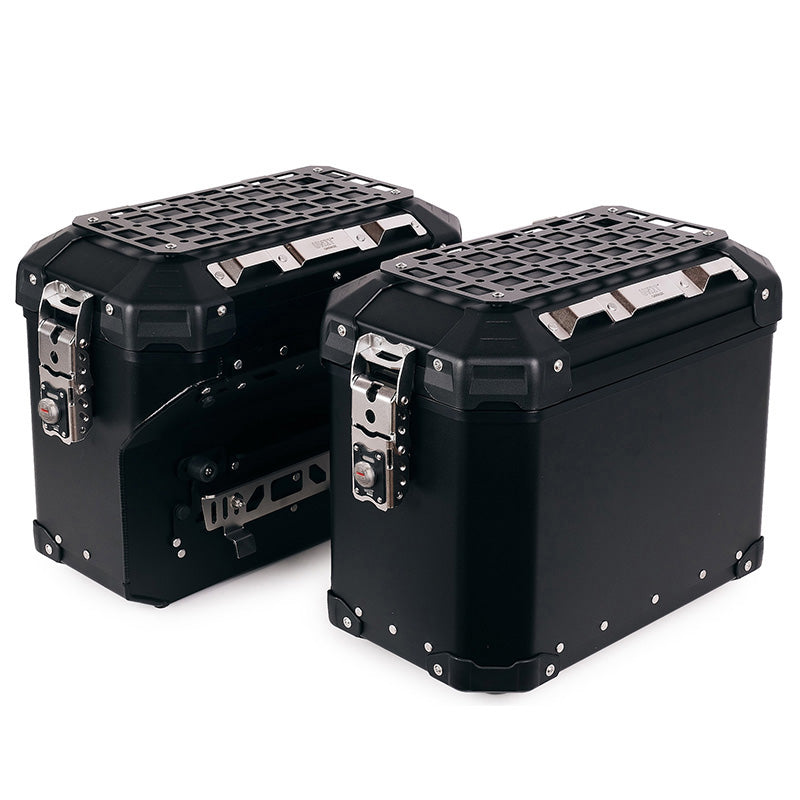

This complete side luggage system combines a matte black Atlas aluminum case with a capacity of 48 liters, a 41-liter case adapted for the exhaust side, and a model-specific stainless steel frame. Made in Italy and individually assembled by hand, the cases combine a high-strength construction with removable lids, stainless steel fittings and a quick-release fastener for 18-mm round tube frames.

Well-Designed Case Construction

• Capacity: 1 × 48 liters and 1 × 41 liters on the exhaust side
• The 48-liter case has space for a full-face helmet.

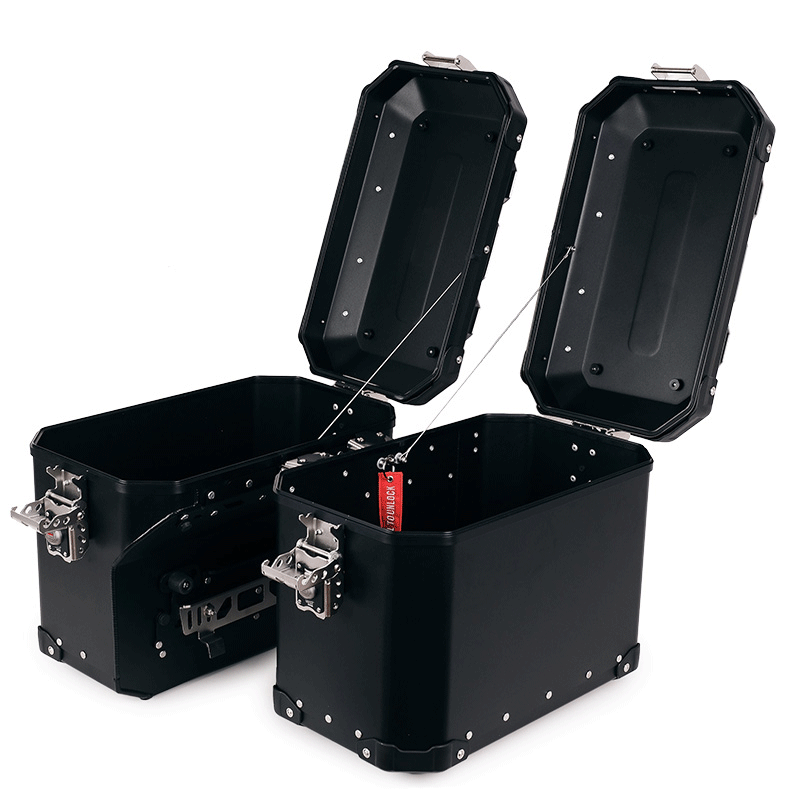

• Fully removable lid that can be opened from either side
• MOLLE panels on the lids for attaching accessories
• Attachment points for elastic nets or additional accessories

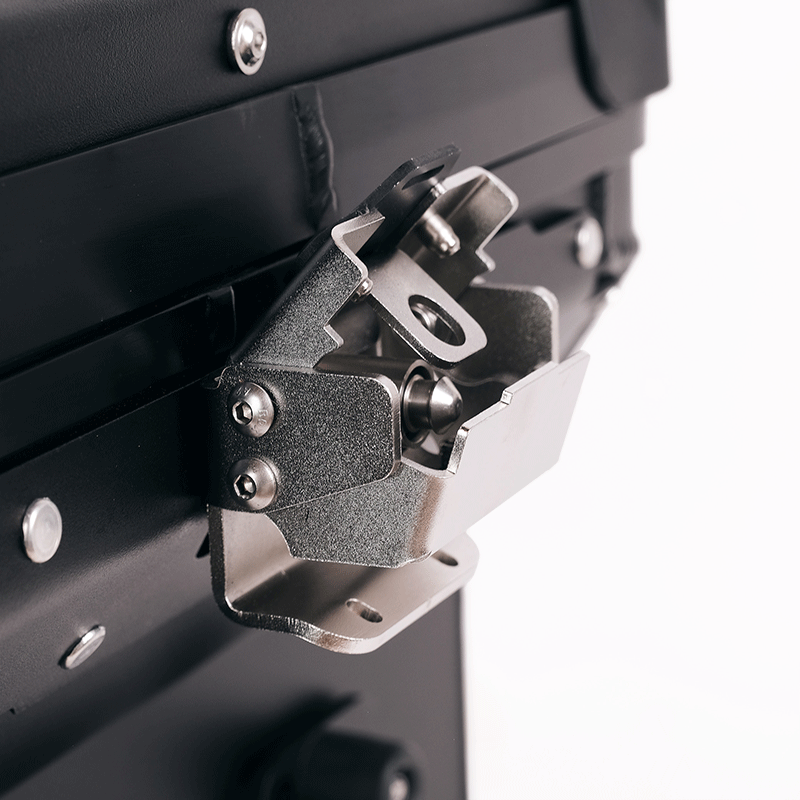

• Automatically opening security fastener for quick attachment and removal
• Fasteners designed to accommodate the included padlock and an additional lock
• Seals between the lid and case body
• Replaceable plastic corner protectors

Materials and Dimensions

• Body and lid made of high-strength aluminum alloy with a material thickness of 1,5 mm
• Reinforced rear mounting area with a material thickness of 4 mm
• Locks, hinges, screws and fittings made of high-quality polished stainless steel
• Galvanically finished and electropolished accessories
• Case finish: Matte black
• Dimensions per case: 390 mm high, 475 mm wide and 282 mm deep
• Weight per case: 6,8 kg

Stainless Steel Frame and Installation

The complete frame set is made of stainless steel with an 18 mm tube diameter. It accommodates the Atlas side cases and is also prepared for original BMW cases. The frame is supplied with the installation kit and screws.

• On the GS model, the passenger footboards do not need to be replaced with the Adventure version.
• Use with a passenger is possible.
• Can be installed in combination with original accessories or compatible Unit Garage accessories
• Frame available in matte black with an epoxy powder coating or silver with a microblasted and electropolished surface

Locking System and Compatibility

The two cases are supplied with keyed-alike lock cylinders and matching keys. For BMW models, a lock block with the original BMW coding mechanism can be purchased separately to match the keys to the motorcycle.

• BMW R 1200 GS LC
• BMW R 1200 GS Adventure LC
• BMW R 1250 GS
• BMW R 1250 GS Adventure LC

Unit Garage continuously improves its products in detail. Images may therefore show an earlier version.
