BMW R 1200 GS [2004-2012] - Pair of motogadget m.blaze pin LED Turn Signals

Minimalist LED turn signals with high visibility

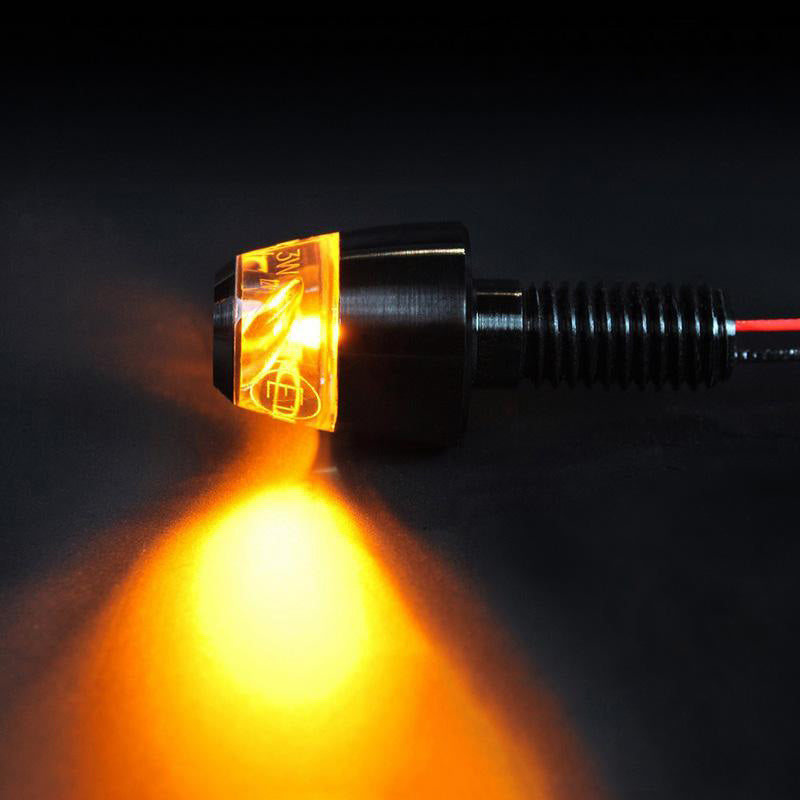

The motogadget m.blaze pin combines extremely compact dimensions with powerful LED technology. The transparent glass body and small aluminum base make the turn signal almost disappear visually on the motorcycle, while it shines clearly and visibly when operating.

Lighting technology and design

• IntensiLED® Technology for high luminous intensity
• Patented TranzLight® Technology for directing the light
• Wide beam angle with clearly visible light from almost every direction
• Electronic voltage conditioning via an IC-controlled constant current source clocked at 330 kHz
• Integrated protective electronics
• CNC-turned aluminum housing, black anodized
• Transparent glass body
• Made in Germany

The surface-mounted turn signal has ECE approval as a front and rear direction indicator.

Technical data

• Overall length including thread: 38,5 mm
• Length without mounting thread: 19,5 mm
• Maximum diameter: 16 mm
• Cable length: approx. 100 cm
• Weight: approx. 12 g
• Mounting via M8 threaded bolt
• Power consumption: approx. 3 watts

Electrical connection

The m.blaze pin can be operated like a conventional LED turn signal with load resistors or with load-independent flasher relays such as m-Flash, m-Wave, m-Stop or m-Relay+.

Scope of delivery and installation

The manufacturer's specifications for the individual surface-mounted turn signal list one m.blaze pin with M8 thread, one M8 nut, an approximately 100 cm long connection cable and installation instructions.

Compatibility

Specified as compatible with BMW R nineT Roadster, Scrambler, Pure, Racer and Urban G/S with low or high exhaust, as well as R850 GS–R1100 GS, R 1150 GS, R1150 GS Adventure, R 850 R–R 1100 R, R 1150 R, R 1200 GS, K75 Marrakesh, K100 sKrambler, K100 Marrakesh and K1100 Marrakesh.

The product range is continuously improved; images may therefore show an earlier version.
