KTM 450 EXC-F SIX Days [2024] - Complete Top End Kit - Forged Pistons

✔️ New part
ID: 15713002357062

$574.01 AUD

DELIVERY
Ready to ship | in 2-6 business days
Delivery with DHL in 10-20 business days.
PRODUCT DESCRIPTION

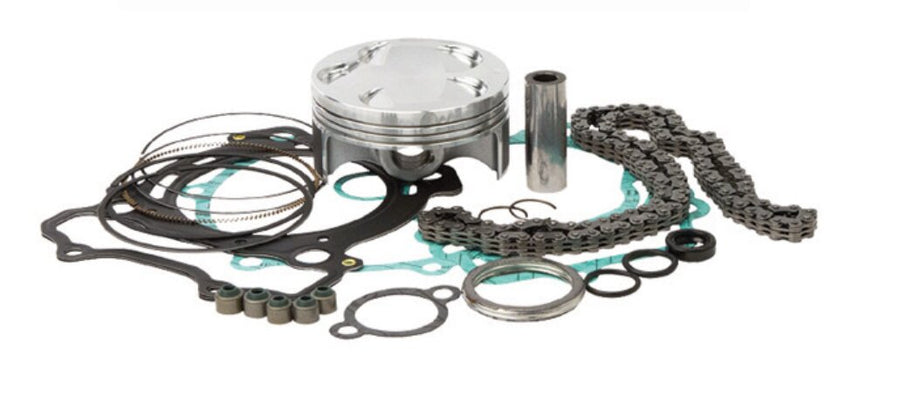

Complete top end kit with forged piston

The VERTEX Top End Kit supports the overhaul of the upper engine area of the KTM 450 EXC-F SIX Days. It bundles the components intended for replacing pistons and seals and can therefore make work on this area of ​​the engine clearer.

Function and scope of delivery

The kit includes the components intended for replacement. Since it is a four-stroke version, a timing chain is also included.

  • Piston
  • Piston rings
  • Piston pin
  • safety clips
  • Top end gasket kit
  • Timing chain

Technical data

  • Material: aluminum
  • Piston Type: Forged
  • Piston compression: standard
  • Diameter Ø (mm): 94.95
  • Letter oversize: A
  • Oversize: STD
  • Bore diameter (mm): 95.00
  • Compression ratio: 11.8:1
  • Rings Quantity: Set
  • Stroke: 4T

Vehicle assignment

The top end kit is assigned to the KTM 450 EXC-F SIX Days from 2024.

Factual note

The combination of forged aluminum piston, piston rings, piston pin, locking clips, top-end seal kit and timing chain offers a summarized selection for work on the upper engine area of the four-stroke version mentioned.

Description

Complete top end kit with forged piston

The VERTEX Top End Kit supports the overhaul of the upper engine area of the KTM 450 EXC-F SIX Days. It bundles the components intended for replacing pistons and seals and can therefore make work on this area of ​​the engine clearer.

Function and scope of delivery

The kit includes the components intended for replacement. Since it is a four-stroke version, a timing chain is also included.

  • Piston
  • Piston rings
  • Piston pin
  • safety clips
  • Top end gasket kit
  • Timing chain

Technical data

  • Material: aluminum
  • Piston Type: Forged
  • Piston compression: standard
  • Diameter Ø (mm): 94.95
  • Letter oversize: A
  • Oversize: STD
  • Bore diameter (mm): 95.00
  • Compression ratio: 11.8:1
  • Rings Quantity: Set
  • Stroke: 4T

Vehicle assignment

The top end kit is assigned to the KTM 450 EXC-F SIX Days from 2024.

Factual note

The combination of forged aluminum piston, piston rings, piston pin, locking clips, top-end seal kit and timing chain offers a summarized selection for work on the upper engine area of the four-stroke version mentioned.
