Kawasaki KX 250 F (KX 250 N) [2004-2005] - Replica forged pistons

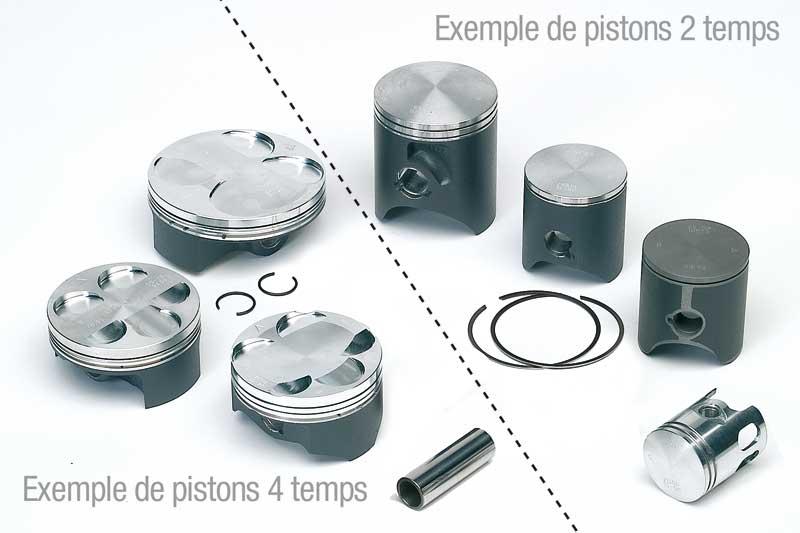

VERTEX Replica forged pistons for the Kawasaki KX 250 F

The VERTEX Replica forged piston is designed as a forged aluminum version for the Kawasaki KX 250 F (KX 250 N) from the 2004-2005 model year range. The technical version is intended for a 4T engine and offers standard piston compression.

Function and execution

As part of the upper engine area, the piston works within the cylinder bore. The forged design and the aluminum used are central features of this version. The piston is offered with a ring set.

Technical data

• Brand: VERTEX
• Piston Type: Forged
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 76.97 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 77.00 mm
• Rings Quantity: Set
• Stroke: 4T

Vehicle assignment

The forged piston is assigned to the Kawasaki KX 250 F (KX 250 N) in the entire 2004-2005 model year range. The diameter of 76.97 mm, the bore diameter of 77.00 mm and the oversize +0.02 with the letter C are particularly relevant for the selection.

Factual advice on selection

Before ordering, please compare the specified piston and bore dimensions as well as the version for the 4T engine with the intended vehicle.
