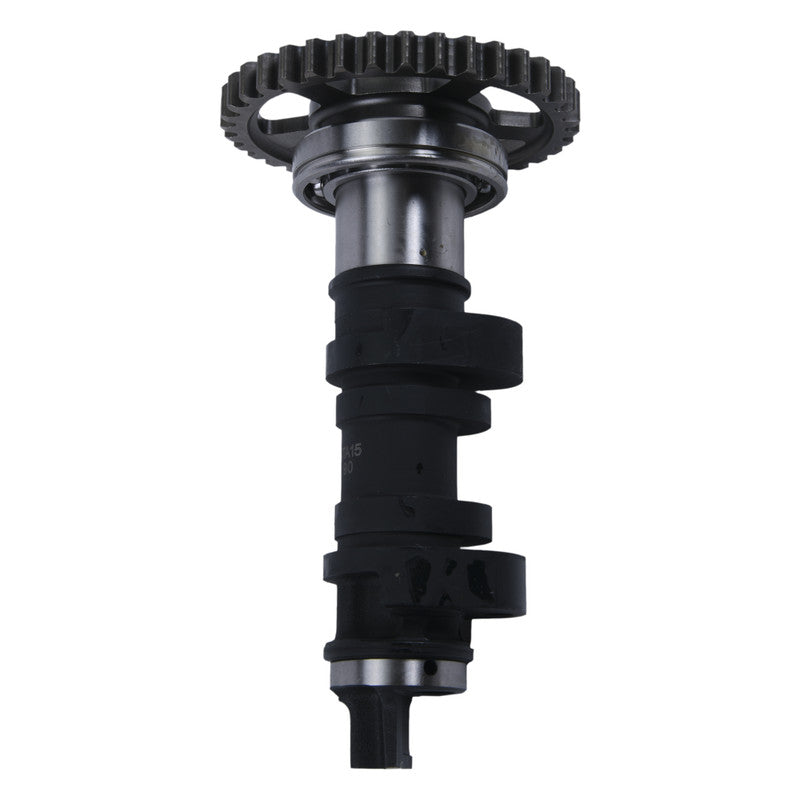

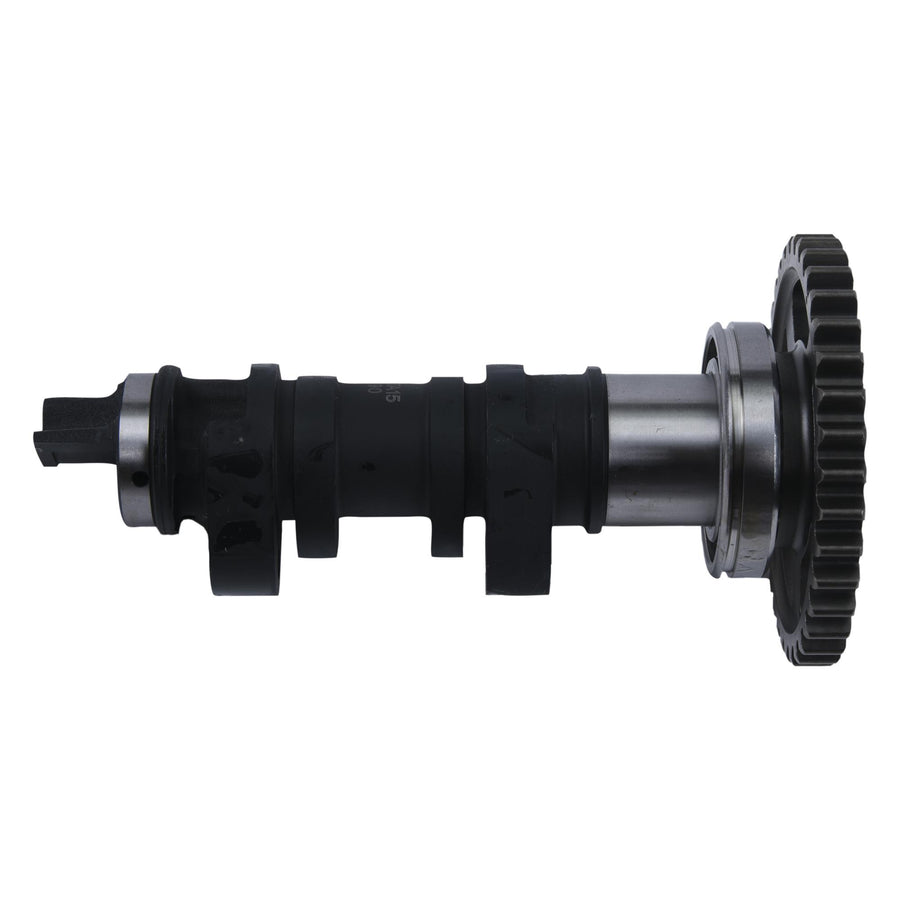

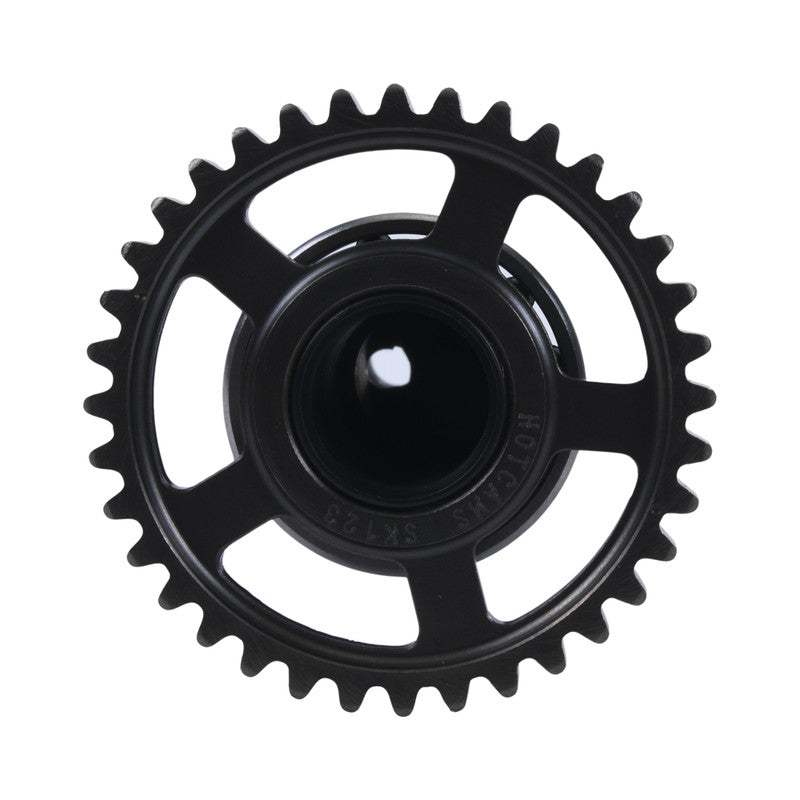

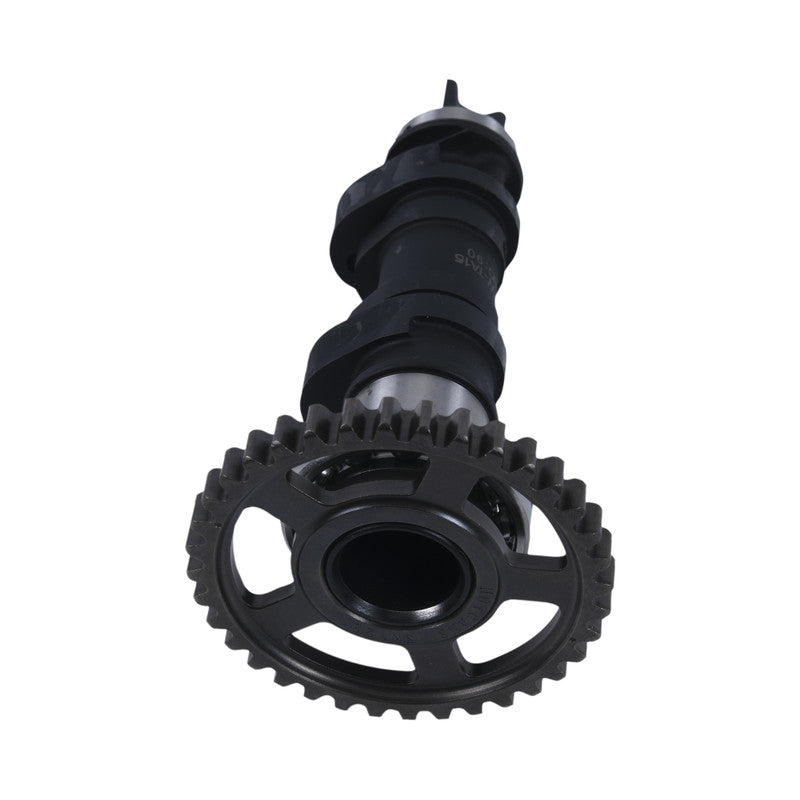

Honda CRF 450 R (PE 07) [2017-2020] - Camshaft Single Cam Stage 2

HOT CAMS Camshaft Single Cam Stage 2 for Honda CRF 450 R

The HOT CAMS camshaft Single Cam Stage 2 is assigned to the Honda CRF 450 R (PE 07) from the 2017-2020 model year range. The version is designed as a stage 2 single cam camshaft and enables targeted selection based on the documented camshaft values.

Technical data

• Level: 2
• Exhaust cam center: 102.15°
• Exhaust cam duration at 1mm: 257°
• Exhaust cam lift: 9.91mm
• Exhaust cam valve clearance: 0.28mm
• Inlet cam center: 107.36°
• Intake cam lift: 10.95mm
• Intake cam valve clearance: 0.13mm
• Duration of intake cam at 1mm: 253.85°

Vehicle assignment

The camshaft fits the Honda CRF 450 R (PE 07), built between 2017 and 2020. This assignment supports the selection of the component for the specified vehicle type and the complete specified year of manufacture range.

Packaging information

The pack size is per piece; the quantity or unit is given as 1. The technical characteristics for inlet and outlet provide a clear basis for selecting parts and comparing them with the intended engine parameters.
