Yamaha XJR 1200 1300 [all years] - LTD-Style headlight H4, 7 inch, clear glass

Choose round headlights for XJR conversions objectively

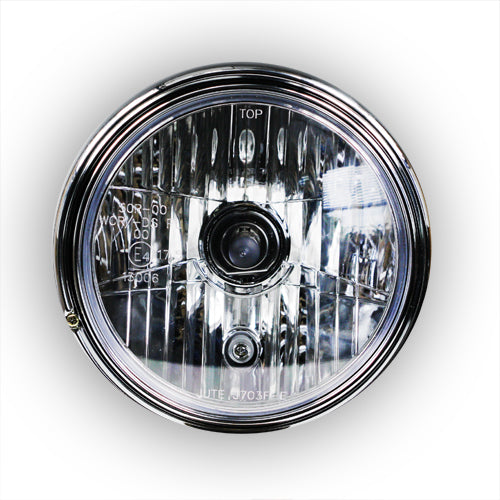

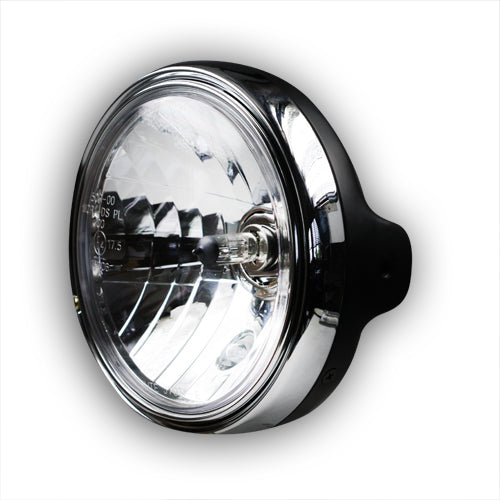

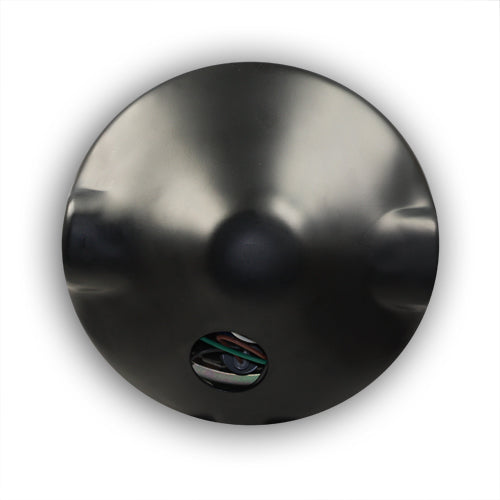

On a Yamaha XJR 1200 or XJR 1300, a round main headlight clearly characterizes the front. This universal LTD-style 7-inch model combines a black housing with clear glass and an H4 prism reflector. The mention of the XJR serves as a conversion context for classic naked bikes, not as confirmed fit information.

Dimensions and lighting technology

• H4, rated for 12V, 60/55W
• Parking light 4 W at 12 V

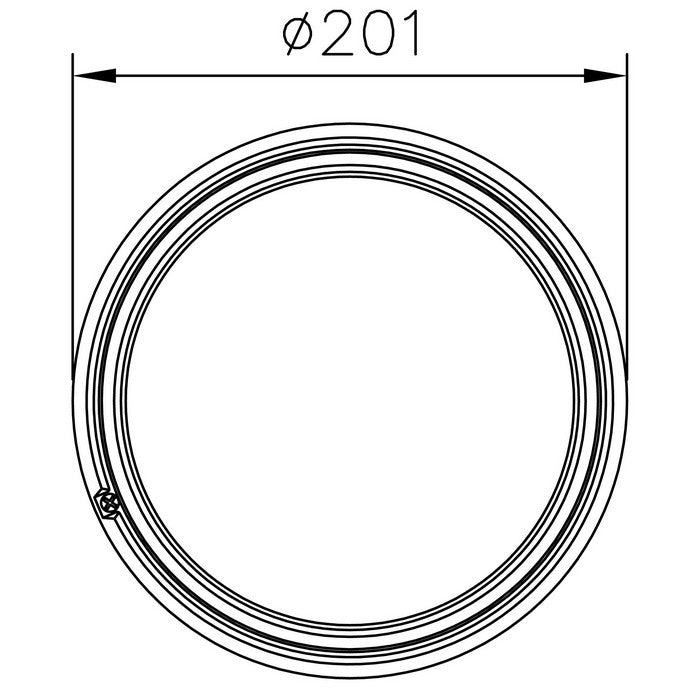

• Outer diameter 201mm

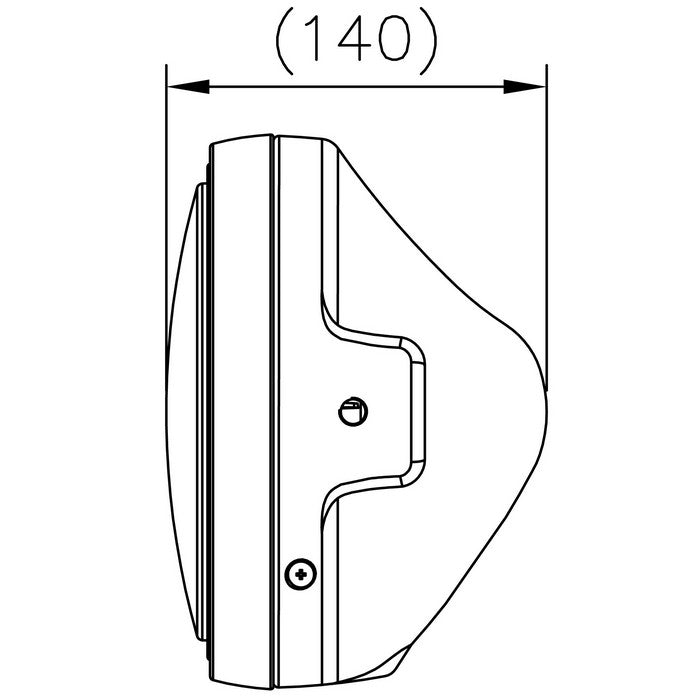

• Glass/reflector diameter 168 mm and housing depth 138 mm
• M8 side fastening, distance 200 mm
• E-approved

What to check on the XJR

First compare the 200 mm wide side mount with the existing or planned lamp holders. The housing depth of 138 mm is just as important: There must be enough space behind the headlight for cables and connections. The electrical connection must be assessed based on the actual wiring of the respective XJR and adjusted professionally if necessary.

After a planned positioning, also check the freedom of movement over the entire steering angle. Instruments, forks, cables and lines must not be affected. Although the headlight is E-tested, the permissibility of the entire change on the specific motorcycle must be assessed separately. Year of manufacture, existing modifications and holder design can significantly change the installation situation.
